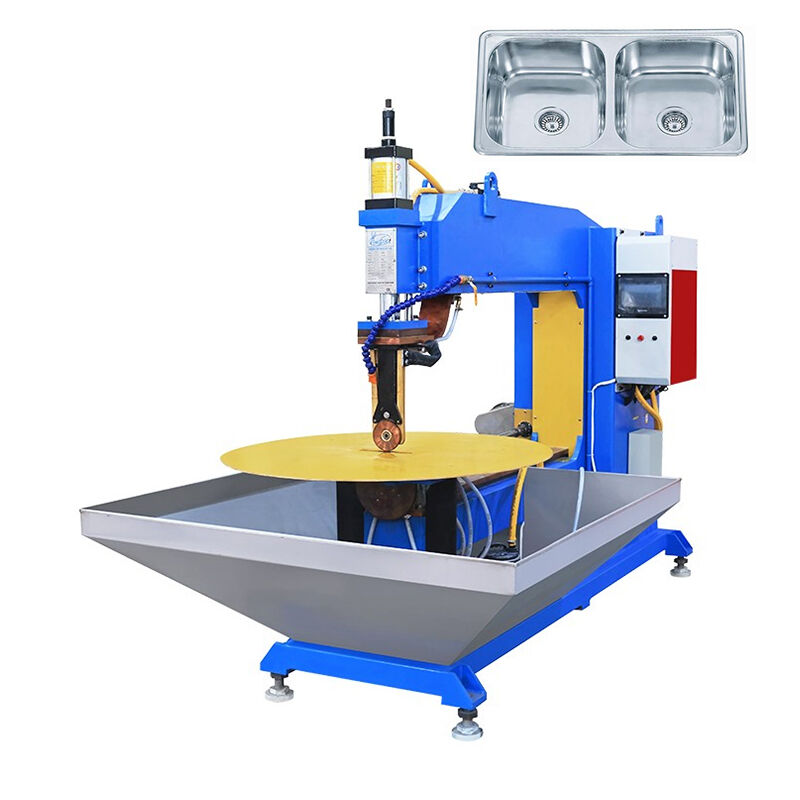

160kVA Stainless Steel Sink Welding Machine with Medium-Frequency Inverter and CNC 3-Axis Servo Control for Industrial Kitchen Sink Production

Designed to provide consistent, high-quality welds for kitchen sink manufacturing applications, this specialized automated solution delivers flawless, high-strength seams for stainless steel sink bowls—critical components in kitchen utensil manufacturing.

At its core is advanced seam welding technology utilizing high-frequency resistance welding (HFW) paired with a servo-driven welding wheel system. This ensures uniform heat distribution along curved or straight seams, creating airtight, leakproof joints with a smooth post-weld surface finish (Ra ≤ 0.8μm)—eliminating the need for manual grinding or polishing.

The machine's adaptive current control adjusts welding parameters in real time based on material variations (304/316 stainless steel) and seam length, guaranteeing consistent weld strength (shear strength ≥ 300MPa) that meets food-grade safety standards (FDA, LFGB).

1. Operator places sink bowl onto fixture on moving table
2. Table automatically moves to welding position
3. Welding roller follows pre-programmed path, creating continuous sealed seam
4. Table returns to loading position for finished sink removal
5. Next cycle begins immediately with near-zero idle time

• Stainless Steel 304 / 201 (primary)
• Stainless Steel 316 / 430
• Low-carbon steel / Galvanized steel (thin gauge)

• Upper Welding Wheel Diameter: 280mm
• Lower Welding Wheel Diameter: 40mm
• Welding Wheel Width: 3mm
• Welding Wheel Rotating Speed: 800-4000mm/min (adjustable)
• Upper Welding Wheel Throat Depth Distance: 400mm
• Lower Welding Wheel Throat Depth Distance: 400mm
• Upper and Lower Welding Wheel Distance: 50mm
• Air Pressure: 0.6MPa
• Gas Consumption: 10m³/h
• Water Pressure: 0.2Mpa
• Water Temperature: 10-20℃
• Cooling Water Consumption: 800L/H

• Intelligent microcomputer single piece controller with pure digital setting
• Online computer programming, LED digital display
• Automatic current compensation during voltage fluctuations
• Digital circuit control with components from world-renowned manufacturers
• High-precision silicon controlled rectifiers from West Germany, IXYS and IR
• Advanced mercury conductive technology for transmission tile axis
• Welding roll wheel made from Japanese alloy copper material
• Transformer using high-purity Japanese silicon steel sheets
• Mosaic connection between welding mold and machine
• Available with AC pulse, secondary rectifying, and three-phase medium frequency welding power sources

• Leading Brand: HWASHI is the premier resistance welding brand in China for 20 years
• Customized Service: Design and develop welding machines according to your requirements
• Genuine Product Quality: 12-month warranty, ISO9001:2000 and China Compulsory Certification compliant
• After-Sales Support: 24-hour technical support by email with professional team
• Quick Delivery: Just-in-time delivery service
• Customer Responsiveness: Prompt response with customer satisfaction as primary goal
