Name: Hwashi PLC Control 380V 2-Phase Door Panel Multi Head Spot Welding Machine with 3+3mm Welding Thickness
Brand: Guangdong Hwashi Technology inc.
SKU: WL-SQ100K
Price: 15000 USD
Availability: InStock

Do domu > produkty > Maszyna do spawania punktów paneli drzwiowych >

Hwashi PLC Control 380V 2-Phase Door Panel Multi Head Spot Welding Machine with 3+3mm Welding Thickness

PLC Control Door Panel Spot Welding Machine

3+3mm Welding Thickness Multi Head Spot Welding Machine

380V 2-Phase Table Spot Welding Machine

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

HWASHI

Orzecznictwo:

CE/CCC/ISO

Numer modelu:

WL-SQ100K

Skontaktuj się z nami

Poproś o wycenę

Szczegóły produktu

Nazwa produktu:

380 V, 2-fazy

Pojemność znamionowa:

150KVAX4

Gwarancja na podstawowe komponenty:

1 rok

Kluczowe punkty sprzedaży:

PLC

Max. Grubość wiązania:

3+3mm

Kontroler systemu:

USMCC SCR

Warunki płatności i wysyłki

Minimalne zamówienie

1 ZESTAW

Cena

US $15000

Szczegóły pakowania

Godne morze opakowanie drewniane

Czas dostawy

7-30 dni roboczych po otrzymaniu płatności

Zasady płatności

T/T, akredytywa

Możliwość Supply

50 zestawów miesięcznie

ZAŁĄCZONE PRODUKTY

Wideo

Hwashi PLC Control 380V 2-Phase Door Panel Multi Head Spot Welding Machine with 3+3mm Welding Thickness

Najlepszą cenę

Wideo

Industrial PLC Control Spot Welding Machine for Door Panels with 3+3mm Welding Thickness and 380V 2-Phase Power

Najlepszą cenę

Wideo

Hwashi Door Panel Multi Head Spot Welding Machine

Najlepszą cenę

Wideo

Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications

Najlepszą cenę

Skontaktuj się z nami

+8613380655800

marketing@hwashi.com

Skontaktuj się teraz

Opis produktu

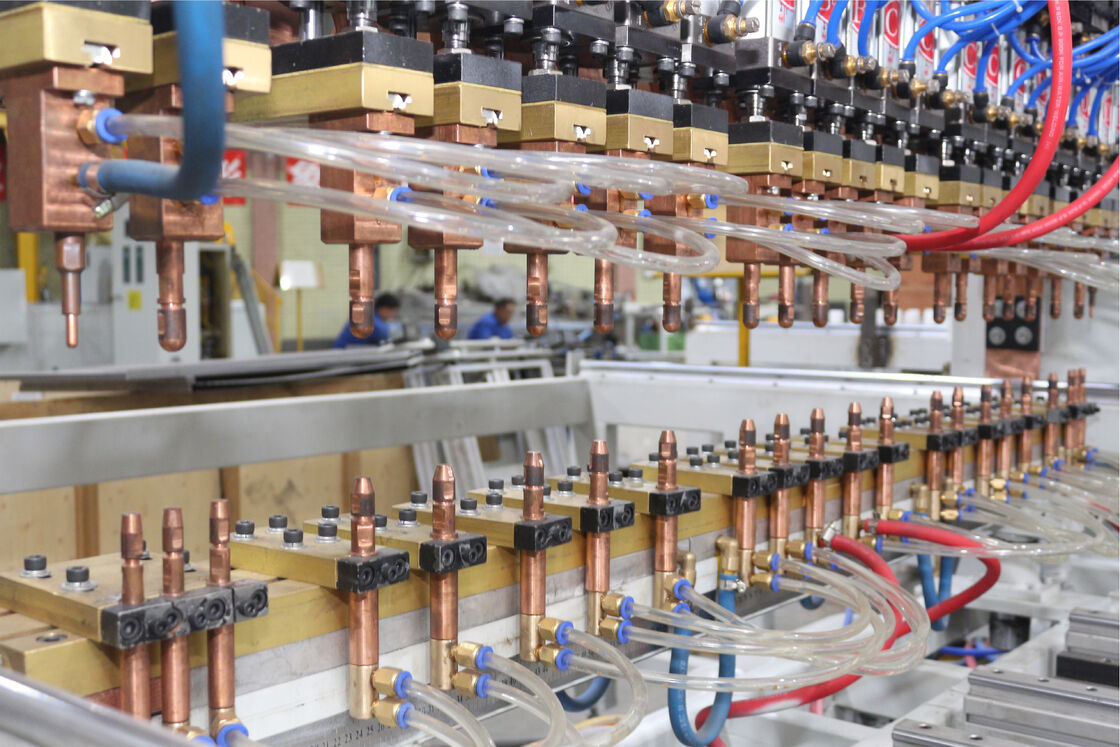

HWASHI Door Panel Multi Head Spot Welding Machine

This advanced multi-head spot welding machine is designed for efficient door panel and sheet metal welding operations. Featuring multiple welding heads with automatic welding capabilities, it offers the flexibility of simultaneous multi-head welding or sequential head operation.

Technical Specifications

The machine features an effective welding width ranging from 1000mm to 2000mm, with a customizable effective welding length of 300mm. It accommodates material thickness from 0.4mm to 1.5mm, making it ideal for various industrial applications.

Working Process

Manually position the workpiece on the work table
Activate the start button for automatic welding of one line of spots
Manually reposition the product for subsequent welding lines
Repeat the process for continuous operation

Key Advantages

Precision welding quality
No specialized equipment requirements
Simultaneous multi-head welding capability
Optimized workspace accessibility
Enhanced production flexibility
Reduced labor costs

Product Features

Flexible Configuration: Adjustable welding head spacing according to your specifications by simply loosening cylinder bolts
Reduced Setup Time: Minimizes electrode adjustment and workbench preparation compared to conventional spot welders
Easy Parameter Setting: Intuitive touch panel interface for welding condition setup with programmable parameter storage
Ergonomic Operation: Automatic pressurization and workpiece placement eliminates manual holding, reducing operator fatigue

Technical Specifications Table

S.N	Items	WL-SF-MF160K	WL-SF-MF120K	WL-SF-MF100K
1	Input Voltage	380V, 3-Phase	380V, 3-Phase	380V, 3-Phase
2	Input Power	160KVA	120KVA	100KVA
3	Max. Welding Current	32000A	30000A	28000A
4	Max. Electrode Force	2.2KN	2.2KN	2.2KN
5	Welding Capacity	3+3mm	2+2mm	1+1mm
6	Welding Schedule	32 Kinds
7	Effective Size Of Welding Platform	2000x300mm (customized)
8	Welding Head Numbers	10 to 20 (as per your drawings)
9	Distance Between Electrodes	100-300mm

Customization Available: All specifications can be tailored to meet your specific production requirements and technical drawings.
